Concertina coil
Galvanised razor wire coils for compound walls, factories and secure perimeters.
Updated 16 October 2026 · Made by Nitin Wire Group, Chennai · +91 91591 43131

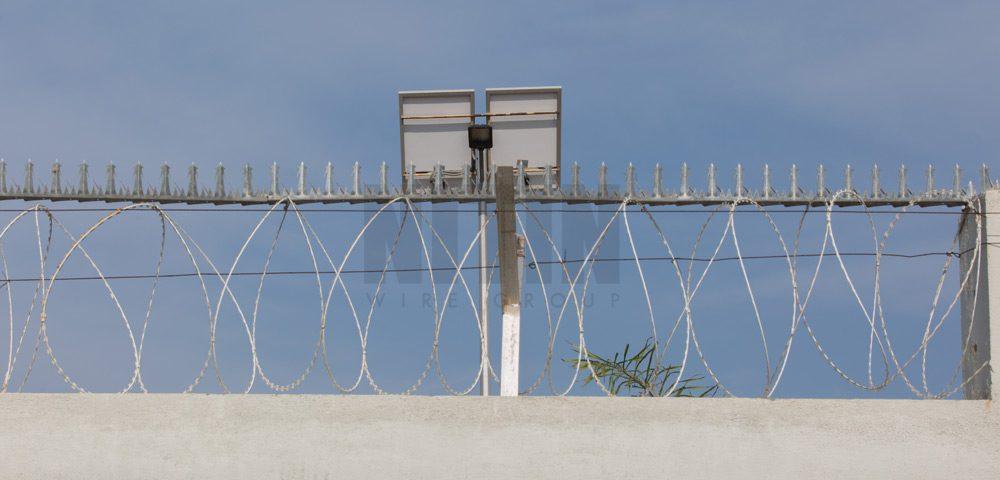

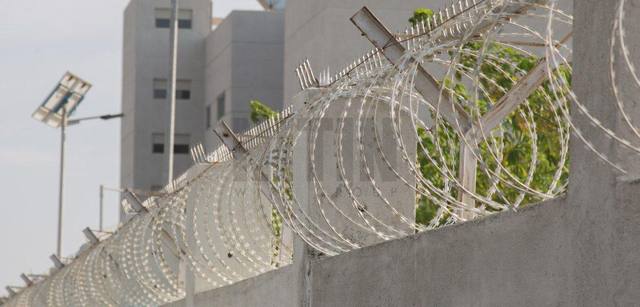

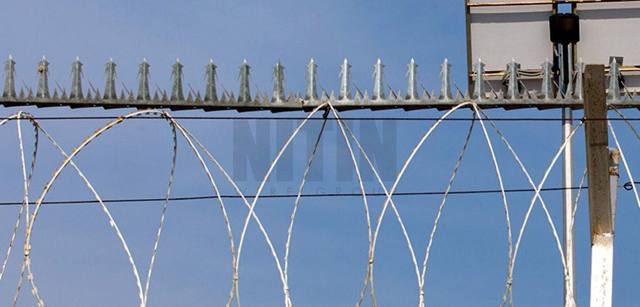

Concertina Coil in the field
Real installations and close-ups. Tap a photo to enlarge it.
Concertina Coil specifications
| Type | Punched, zinc coated |
|---|---|
| Blade thickness | 0.5 mm |
| Blade length | 19 mm |
| Core wire | 2.6 mm |
| Coil diameter | 460 mm (1.5 ft), 610 mm (2 ft), 950 mm (3 ft), 1,050 mm |
| Loops per coil | 50 |
| Length covered | 6 m per coil |
| Weight incl. packing | Max 6.5 / 9 / 13.5 / 15.2 kg by diameter |
What makes it work
- High-tensile core
A galvanised high-tensile steel core keeps the coil springy and hard to cut.
- Razor-sharp blades
Punched blades give a strong visual and physical deterrent.
- Anti-climb, anti-cut
The coiled blade mass is difficult to climb over or cut through.
- Rust-resistant
Zinc-coated blades and wire suit permanent outdoor installation.
- Easy to install
Fits on walls, fences and open boundaries, as a permanent or temporary barrier.
Concertina Coil applications
Manufacturing Unit
Perimeter, compound wall and machine-area security for industrial sites.
Warehouse
Perimeter security, internal partitions and secure storage areas.
Construction & Real Estate
Site boundaries, plot fencing and safety netting, supplied in bulk.
Villas & Residential Spaces
Secure boundaries, privacy screens and balcony safety for modern homes.
Concertina Coil: questions buyers ask
Which size concertina coil is best for a compound wall?
For the top of a typical compound wall, a 460 mm (1.5 ft) or 610 mm (2 ft) coil is usually enough and keeps weight down. The larger 950 mm and 1,050 mm coils suit factory perimeters, open boundaries and ground-level barriers where a bigger obstacle is needed.
How many concertina coils do I need?
Each Nitin concertina coil covers about 6 metres when stretched, so divide the length of your wall or fence by 6 and round up. A 120 m boundary needs 20 coils for a single row. Add more for a double row or a stacked arrangement on open ground.
How is concertina coil installed on a compound wall?
Concertina coil is usually fixed on top of a wall with Y-shaped or straight angle brackets anchored into the wall, with tension wires run along the brackets. The coil is stretched out along the wires and tied with clips or binding wire at regular intervals so it holds its shape.
What is the difference between concertina coil and barbed wire?
Barbed wire is straight twisted wire with small barbs, strung in lines between posts. Concertina coil is a looped coil of wire covered in razor blades, which forms a bulky three-dimensional barrier that is far harder to climb or cut. Concertina is used where security matters more than cost.
Does concertina coil rust?
Nitin's concertina coil uses zinc-coated blades and galvanised core wire, which resist rust in normal outdoor conditions. Near the sea or in industrial air any galvanised product weathers faster, so inspect the coil periodically and replace damaged sections.
