Welded wire mesh
Wires welded at every crossing for a rigid, uniform grid.
Updated 16 October 2026 · Made by Nitin Wire Group, Chennai · +91 91591 43131

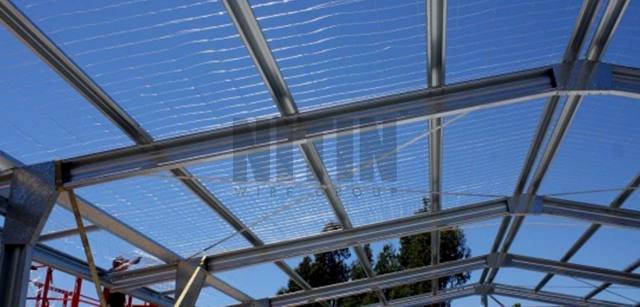

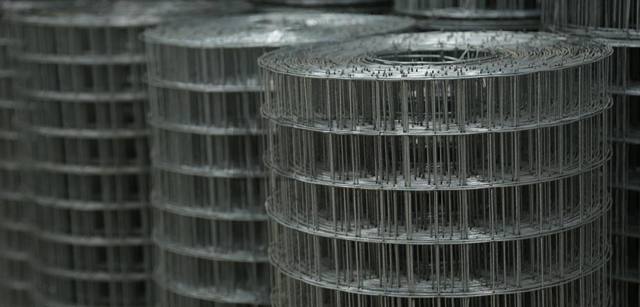

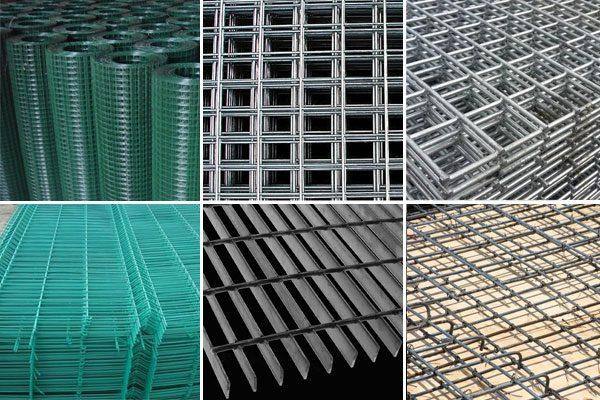

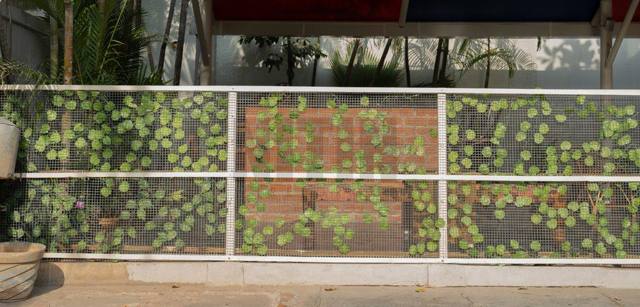

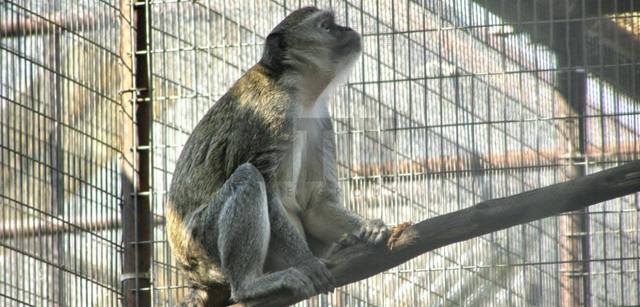

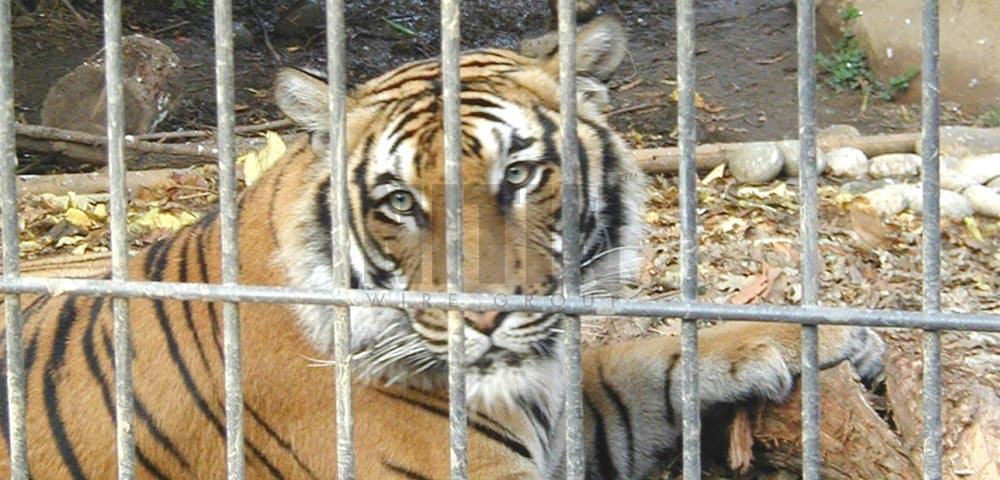

Welded Mesh in the field
Real installations and close-ups. Tap a photo to enlarge it.
Welded Mesh specifications
| Material | Mild steel (MS), galvanised iron (GI), stainless steel (SS), aluminium |
|---|---|
| Finish | Electro galvanised, hot-dip galvanised, PVC coated |
| Wire thickness | 0.8 mm to 3 mm |
| Mesh opening | 3 mm to 25 mm |
| Sizes | Custom sizes and specifications on request |
What makes it work
- Welded at every joint
Each crossing is electrically welded, so the grid stays rigid and the openings stay even.
- Hard to climb
Small openings give no foothold, which suits boundary and security fencing.
- Rust protection
Galvanised and PVC coated finishes protect the steel against rust and corrosion outdoors.
- Panels and rolls
Supplied as welded fencing panels, concrete reinforcement fabric and mesh rolls.
- Clean appearance
The uniform square grid also works in architectural and interior projects.
Welded Mesh applications
Agriculture & Farming
Keep cattle, goats and wild boar out of crops, and livestock in.
Manufacturing Unit
Perimeter, compound wall and machine-area security for industrial sites.
Construction & Real Estate
Site boundaries, plot fencing and safety netting, supplied in bulk.
Schools & Colleges
Safe campus boundaries, playgrounds and sports grounds for institutions.
Warehouse
Perimeter security, internal partitions and secure storage areas.
Welded Mesh: questions buyers ask
What is welded wire mesh used for?
Welded wire mesh is used for boundary fencing, poultry and animal enclosures, concrete slab reinforcement, machine guards, storage cages and partitions. The welded joints keep openings fixed, so the mesh holds its shape better than woven mesh of the same wire.
What is the difference between welded mesh and chainlink fence?
Welded mesh is a rigid grid with wires welded at each crossing. Chainlink is woven from zig-zag wires into a flexible diamond pattern. Welded mesh is stiffer and harder to climb; chainlink is easier to tension over long, uneven runs.
Which is better, GI or PVC coated welded mesh?
GI (galvanised) welded mesh relies on a zinc coating against rust and suits most outdoor uses. PVC coated mesh adds a plastic layer over the wire, giving extra protection in wet or coastal air and a green or coloured finish.
What wire thickness and opening sizes does Nitin welded mesh come in?
Nitin Wire Group lists welded mesh with wire thickness from 0.8 mm to 3 mm and mesh openings from 3 mm to 25 mm, in MS, GI, SS and aluminium. Custom sizes can be made for project orders.
What is the difference between electro galvanised and hot-dip galvanised welded mesh?
Electro galvanised mesh has a thin, smooth zinc layer applied by electroplating and suits indoor or light outdoor use. Hot-dip galvanised mesh is dipped in molten zinc, giving a thicker coating that generally lasts longer outdoors.
