TATA 3D fence panel
Powder-coated V-bend welded mesh panels from Tata Wiron, stocked in Chennai.
Updated 16 October 2026 · Made by Nitin Wire Group, Chennai · +91 91591 43131

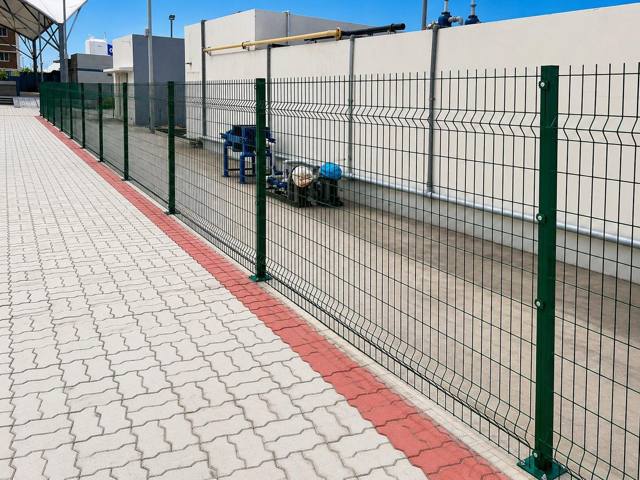

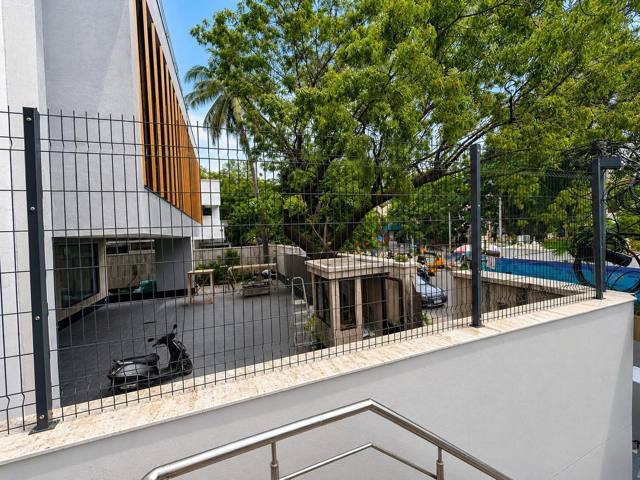

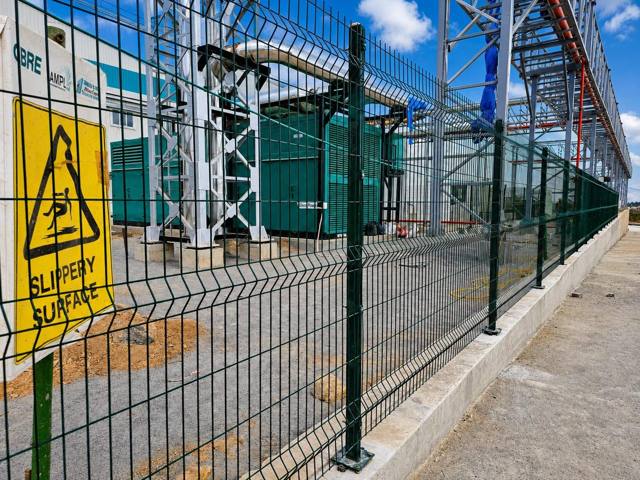

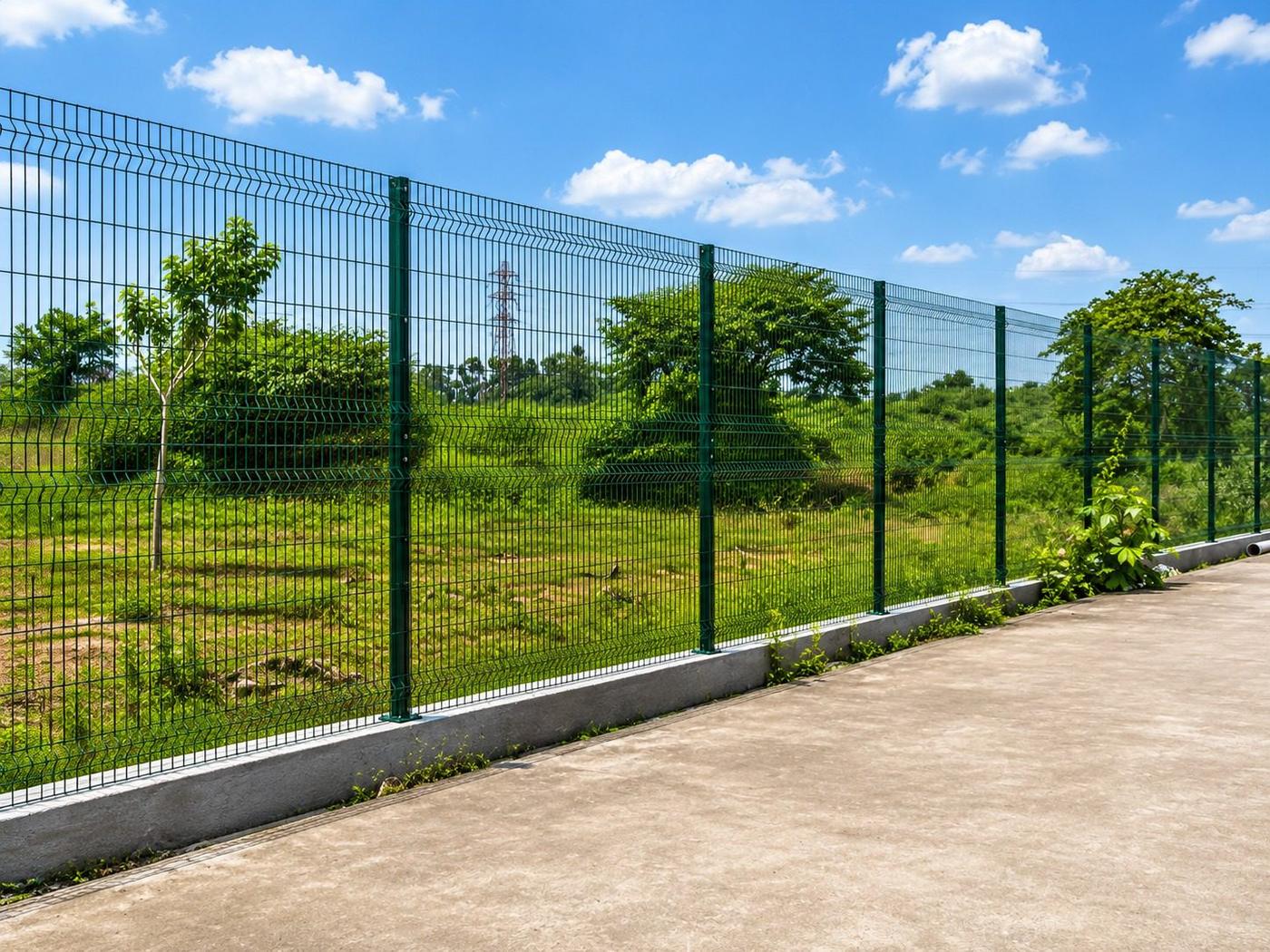

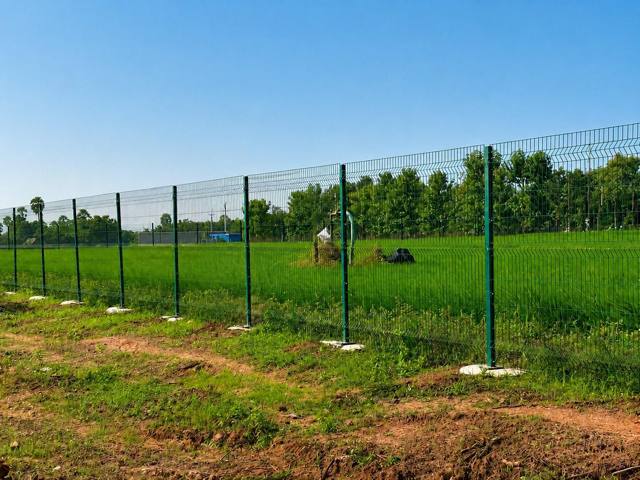

TATA 3D Fence Panel in the field
Real installations and close-ups. Tap a photo to enlarge it.
TATA 3D Fence Panel specifications
| Wire | Tata Wiron, 4 mm galvanised, 60–80 kg/mm² tensile strength |
|---|---|
| Mesh opening | 200 mm × 50 mm |
| Panel height | 0.6 / 0.9 / 1.2 / 1.5 / 1.8 / 2.0 m |
| Panel width | 2.5 m |
| Powder coating | Pure polyester, minimum 80 microns |
| Colours | Green, Grey, Black, White; custom on request |
| Posts | Tata Structura RHS 60 × 40 mm, 2 mm thick, min 120 GSM zinc, 0.6 to 3.2 m |
| Tested to | 1,000 h salt spray (ASTM B117), 1,000 h UV (ASTM D1499) |
| Accessories included | Spider Clamps, SS Mushroom Bolts, Anchor Fasteners, Base Plates, Anchor Rods — galvanized and powder coated (only in features, not spec table) |
| Mounting options | Anchor Fastener (in-ground) or Base Plate (surface-mounted) (only in features) |
What makes it work
- V-bend rigidity
Three V-bends stiffen the panel across all heights while keeping sight lines open.
- Bolt-together assembly
Panels fix to posts with nuts and bolts, so no welding is needed on site.
- Tested coating
No deterioration after 1,000 hours of salt spray and no colour loss after 1,000 hours of UV exposure.
- Two mounting options
Posts come with anchor fasteners for in-ground fixing or base plates for surface mounting.
- Matching accessories
Spider clamps, SS mushroom bolts, anchor fasteners, base plates and anchor rods are galvanised and powder coated to match.
- Ready stock
Green, black and white panels are stocked in-house for quick dispatch.
TATA 3D Fence Panel applications
Villas & Residential Spaces
Secure boundaries, privacy screens and balcony safety for modern homes.
Manufacturing Unit
Perimeter, compound wall and machine-area security for industrial sites.
Warehouse
Perimeter security, internal partitions and secure storage areas.
Construction & Real Estate
Site boundaries, plot fencing and safety netting, supplied in bulk.
Schools & Colleges
Safe campus boundaries, playgrounds and sports grounds for institutions.
TATA 3D Fence Panel: questions buyers ask
What sizes do TATA 3D fence panels come in?
TATA 3D fence panels are 2.5 m wide and come in heights of 0.6, 0.9, 1.2, 1.5, 1.8 and 2.0 m. Posts are available from 0.6 m to 3.2 m with anchor-fastener or base-plate mounting. Custom heights, widths and colours can be made against order.
How many posts do I need for a 3D fence panel?
You need one post more than the number of panels in each straight run, because every panel spans the gap between two posts. With 2.5 m wide panels, a straight 100 m fence takes 40 panels and 41 posts. Add posts for every corner, gate and change of direction.
How long does the coating on a 3D fence panel last?
Nitin rates the powder coating on TATA 3D fence panels for more than 10 years of coating life. The panels show no deterioration after 1,000 hours of salt spray testing (ASTM B117) and no colour loss after 1,000 hours of UV exposure (ASTM D1499).
Can 3D fence panels be fixed on a compound wall?
Yes. Posts are supplied either with base plates that bolt onto a concrete surface such as a parapet or plinth, or with anchor fasteners for in-ground fixing. Base-plate mounting lets you add a 3D panel fence above an existing low wall.
What colours are TATA 3D fence panels available in?
Standard colours are green, grey, black and white, with a pure polyester powder coat of at least 80 microns. Custom colours are available on request for bulk orders. Nitin keeps green, black and white panels in ready stock.
Do you deliver TATA 3D fence panels outside Chennai?
Yes. Nitin Wire Group delivers pan-India across 28 states, with ready stock held at its Chennai and Manamai (ECR) facilities. Panels are dispatched with dedicated logistics and safe handling, and a support team tracks orders after dispatch.
